Power Pivoting Trailer Hitch Button -E474-, REMOVING AND INSTALLING: Removing

WARNING: This page is about a different car, the 2023 Volkswagen Arteon. However, it is still accessible from the selected car via links, so may be relevant.

-- Detach the luggage compartment side trim panel. Refer to LUGGAGE COMPARTMENT SIDE TRIM PANEL, REMOVING AND INSTALLING .

-- Disconnect the connector from the Power Pivoting Trailer Hitch Button -E474-.

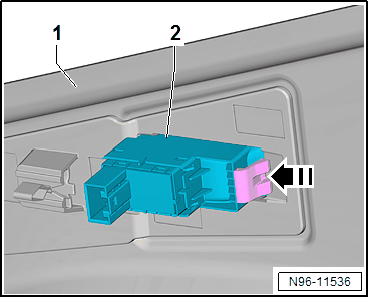

-- Release the retaining tabs of the trim -2- in direction of the -arrow-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the trim -2- with the Power Pivoting Trailer Hitch Button -E474- inward from the luggage compartment side trim panel -1-.

-- Release the retainers -2- on both sides.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the Power Pivoting Trailer Hitch Button -E474- -3- from the trim -1-.
