Headlamp Range Control Adjuster -E102-, REMOVING AND INSTALLING: Removing
WARNING: This page is about a different car, the 2023 Volkswagen Arteon. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the Rotary Light Switch -EX1-. Refer to Rotary Light Switch -EX1-, REMOVING AND INSTALLING .

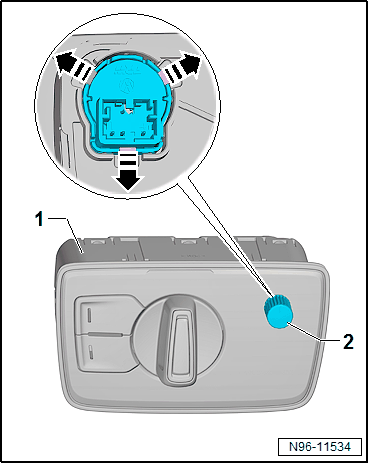

-- Release the retainers in direction of the -arrow-.
-- Press out the Windshield Projection Head Up Display Button -E736- -2-.
