Emergency Flasher Switch -EX3-, REMOVING AND INSTALLING: Removing

WARNING: This page is about a different car, the 2023 Volkswagen Arteon. However, it is still accessible from the selected car via links, so may be relevant.

-- Remove the front passenger side instrument panel vent. Refer to OUTER INSTRUMENT PANEL VENT, REMOVING AND INSTALLING .

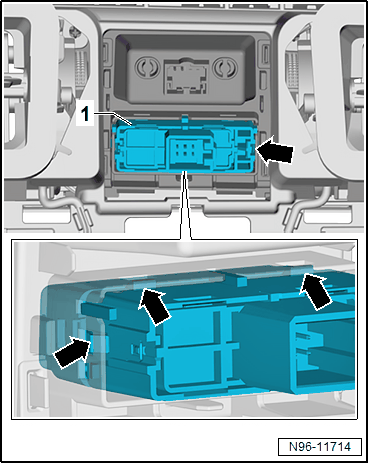

-- Release the retainers -arrows- at the Emergency Flasher Switch -EX3- -1-.

GWWN96-11714Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the Emergency Flasher Switch -EX3- -1- from the instrument panel vent.
