Driver Interior Locking Button -E308-, REMOVING AND INSTALLING: Removing

WARNING: This page is about a different car, the 2023 Volkswagen Arteon. However, it is still accessible from the selected car via links, so may be relevant.

-- Remove the front door trim panel. Refer to FRONT DOOR TRIM PANEL, REMOVING AND INSTALLING .

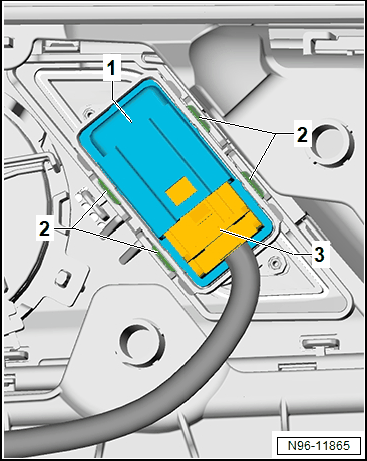

-- Disconnect the connector -3-.

GWWN96-11865Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Release the tabs -2-.

-- Remove the Driver Interior Locking Button -E308- -1-.
