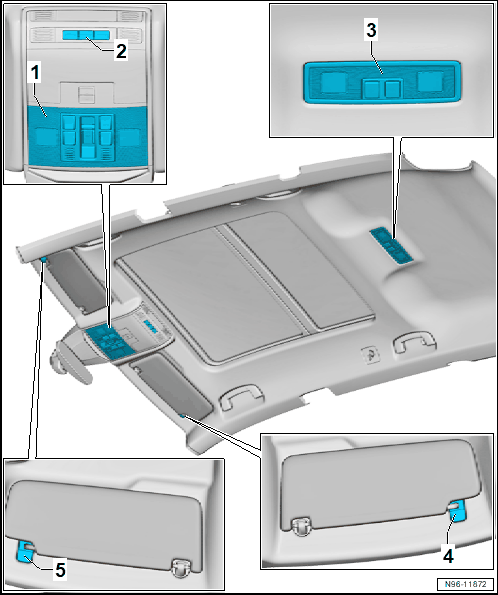

Component Location Overview - Controls In Roof Trim Panel

WARNING: This page is about a different car, the 2023 Volkswagen Arteon. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Front Interior Lamp/Reading Lamp
- Button for Rear Interior Lamp -W43-
- Right Front Reading Lamp Button -E634-
- Front Interior Lamp -W1- Button
- Sunroof Button -E325-
- The individual buttons are integrated into the front interior lamp/reading lamp and can not be replaced individually.
- Removing and Installing. Refer to FRONT INTERIOR LAMP/READING LAMP, REMOVING AND INSTALLING .
Telematics Button Module -E734-
- Information Service Button -E450-
- Emergency Call Button -E276-
- Roadside Assistance Button -E275-
- The individual buttons are installed in the Telematics Button Module -E734- and cannot be removed separately.
- Removing and Installing. Refer to Telematics Button Module -E734-, REMOVING AND INSTALLING .
Rear Interior Lamp/Reading Lamp
- Rear Interior Lamp Button -E327-
- Button for Rear Interior Lamp -W43-
- The individual buttons are integrated into the rear interior lamp/reading lamp and can not be replaced individually.
- Removing and Installing. Refer to REAR INTERIOR LAMP/READING LAMP, REMOVING AND INSTALLING .
Driver Vanity Mirror Lamp Contact Switch -F147-
- Not to be replaced separately
- Removing and Installing. Refer to SUN VISOR, REMOVING AND INSTALLING .
Front Passenger Vanity Mirror Lamp Contact Switch -F148-
- Not to be replaced separately
- Removing and Installing. Refer to SUN VISOR, REMOVING AND INSTALLING .
