Center Console Switch Module 1 -EX23- /Center Console Switch Module 2 -EX30-, REMOVING AND INSTALLING: Removing

WARNING: This page is about a different car, the 2023 Volkswagen Arteon. However, it is still accessible from the selected car via links, so may be relevant.

-- Switch off the ignition and all electrical equipment.

-- Place the ignition key and other drive authorization systems outside of the vehicle interior, to avoid an unintentional start of the vehicle.

-- Unclip the shift lever boot upward out of the center console. Refer to the appropriate Service Information .

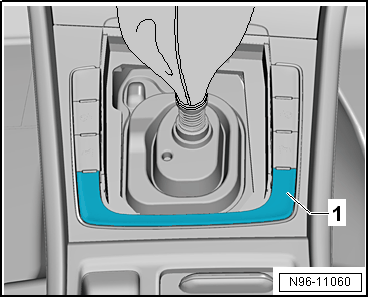

-- Pry out the trim -1- using the Removal Wedge Set:VAS895015 .

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

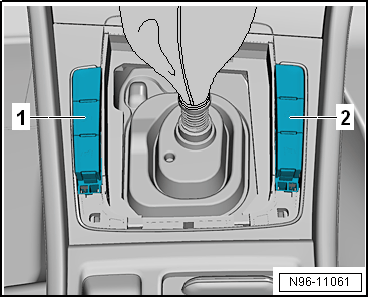

-- Pry out the center console switch module -1 and 2- using the Removal Wedge Set:VAS895015 .

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Disconnect the connector.

-- Remove the Center Console Switch Module -1 and 2-.

If the driver side button module can not be removed as described, then:

-- Remove the center console insert. Refer to CENTER CONSOLE INSERT, REMOVING AND INSTALLING .

-- Unclip the Center Console Switch Module from the underside of the center console insert.
