Anti-Theft Alarm System Sensor -G578-, REMOVING AND INSTALLING: Removing

WARNING: This page is about a different car, the 2023 Volkswagen Arteon. However, it is still accessible from the selected car via links, so may be relevant.

-- Remove the headliner storage compartment. Refer to HEADLINER STORAGE COMPARTMENT, REMOVING AND INSTALLING .

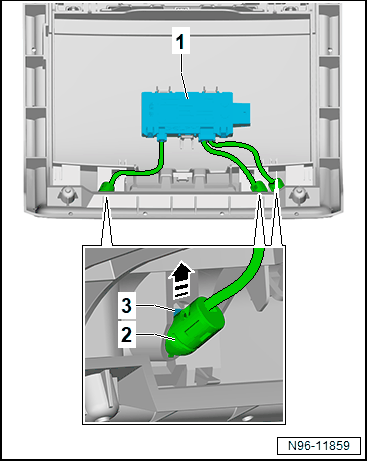

-- Release the mounting tabs -2- in direction of the -arrow-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the Anti-Theft Alarm System Sensor -G578- -1- from the headliner storage compartment.

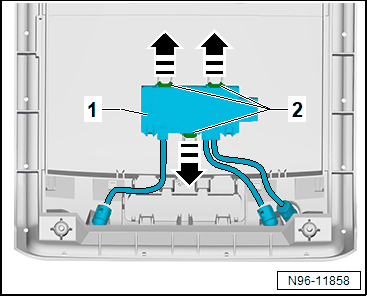

-- Release the mounting tabs -3- in the direction of the -arrow-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the individual sensors -2-.

-- Remove the Anti-Theft Alarm System Sensor - G578- -1-.
