Alarm Horn -H12-, REMOVING AND INSTALLING: Removing

WARNING: This page is about a different car, the 2023 Volkswagen Arteon. However, it is still accessible from the selected car via links, so may be relevant.

-- Remove the plenum chamber cover. Refer to PLENUM CHAMBER COVER, REMOVING AND INSTALLING .

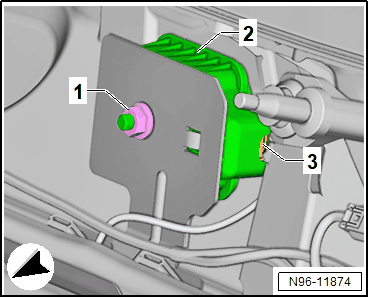

-- Remove the nut -1-.

GWWN96-11874Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the Alarm Horn -H12- -2-, until the connector is accessible.

-- Disconnect the connector -3-.

-- Remove the Alarm Horn -H12- -2-.
