Rear Lid Tail Lamp, Removing And Installing: Removing

WARNING: This page is about a different car, the 2023 Volkswagen Arteon. However, it is still accessible from the selected car via links, so may be relevant.

-- Switch off the ignition and all electrical equipment.

-- Place the ignition key and other drive authorization systems outside of the vehicle interior, to avoid an unintentional start of the vehicle.

-- Remove the luggage compartment trim panel. Refer to REAR LID LOWER TRIM PANEL, REMOVING AND INSTALLING .

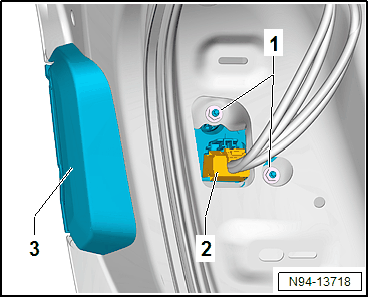

-- Remove the nuts -1-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Disconnect the connector -2-.

-- Remove the rear lid tail lamp -3-.
