Lower Tail Lamp, Removing And Installing: Removing
WARNING: This page is about a different car, the 2023 Volkswagen Arteon. However, it is still accessible from the selected car via links, so may be relevant.
-- Switch off the ignition and all electrical equipment.
-- Place the ignition key and other drive authorization systems outside of the vehicle interior, to avoid an unintentional start of the vehicle.

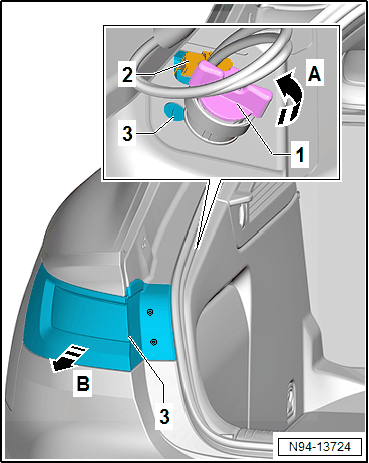

-- Open the access cover in the luggage compartment side trim panel.
-- Disconnect the connector -2-.
-- Turn the quick release -1- in direction of the -arrow A- all the way.
-- Remove the -3- in direction of the -arrow B-.
