Overview - High-Mounted Brake Lamp, ARTEON

WARNING: This page is about a different car, the 2023 Volkswagen Arteon. However, it is still accessible from the selected car via links, so may be relevant.

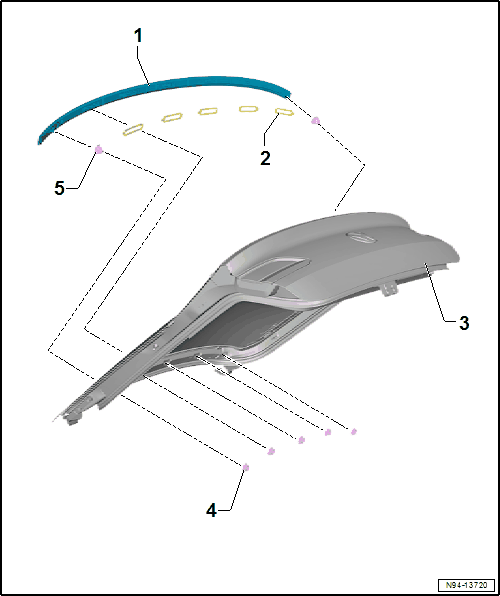

Fig 1: Exploded View Of High-Mounted Brake Lamp
GWWN94-13720Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
  1. High-Mounted Brake Lamp
  2. Seal
    • Replace after removing
    • Quantity: 5
  3. Rear Lid
  4. Nut
    • Tightening specification and sequence. Refer to Fig 2.
    • Quantity: 5
  5. Clip Nut
    • Quantity: 2

High-Mounted Brake Lamp Bulb - Tightening Specification and Sequence

Fig 2: High-Mounted Brake Lamp Bulb - Tightening Sequence
GWWA94-12117Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Tighten the bolts in steps in the tightening sequence shown:

Component Tightening Specification
-1, 2, 3, 4 and 5- 3 Nm
