High-Mounted Brake Lamp Bulb -M25-, REMOVING AND INSTALLING, ARTEON: Removing
WARNING: This page is about a different car, the 2023 Volkswagen Arteon. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the rear lid upper trim panel. Refer to REAR LID UPPER TRIM PANEL, REMOVING AND INSTALLING .

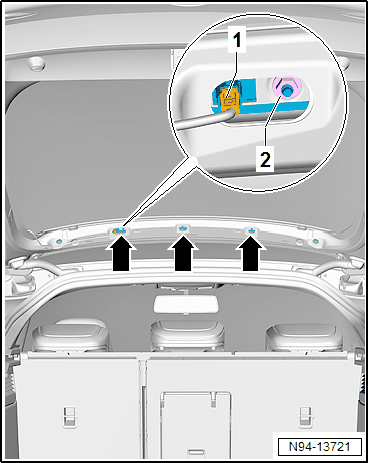

-- Disconnect the connector -1-.
-- Remove the nuts -2-.

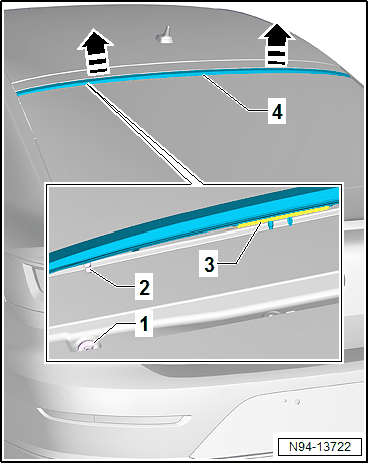

-- Pry out the retaining pins -2- on the outer sides with Wedge:T10383/1 from the clip nuts -1-.
-- Pry out the High-Mounted Brake Lamp Bulb -M25- -4- using the Wedge:T10383/1 in direction of the -arrow-, at the same time the seals -3- are loosened from their bonding.
