Overview - Led Headlamp High

WARNING: This page is about a different car, the 2023 Volkswagen Arteon. However, it is still accessible from the selected car via links, so may be relevant.

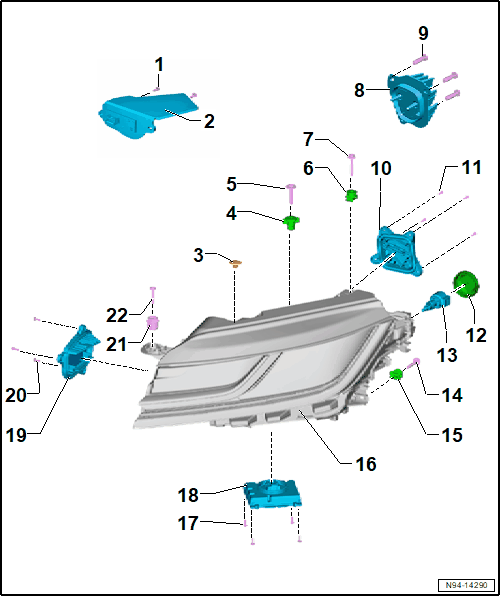

Fig 1: Exploded View Of LED Headlamp (High)
GWWN94-14290Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
  1. Bolt
    • 1.5 Nm
    • Quantity: 2
  2. Turn Signal Bulb
  3. Plug in Horizontal Setting
    • Market-Specific Version
  4. Adjusting Element
  5. Bolt
    • 4 Nm
  6. Lifter
  7. Bolt
    • 8 Nm
  8. Daytime Running Lamp and Position Lamp LED Module
  9. Bolt
    • 1.5 Nm
    • Quantity: 3
  10. Housing Cover
  11. Bolt
    • 1.5 Nm
    • Quantity: 4
  12. Headlamp Beam Adjustment Motor Housing Cover
  13. Headlamp Beam Adjustment Motor
  14. Bolt
    • 4 Nm
  15. Lifter
  16. Headlamps
  17. Bolt
    • 1.5 Nm
    • Quantity: 4
  18. LED Headlamp Power Output Module 1
  19. Cornering Lamp Bulb
  20. Bolt
    • 1.5 Nm
    • Quantity: 3
  21. Banjo Bolt
    • For the headlamp height adjustment
  22. Bolt
    • 4 Nm
