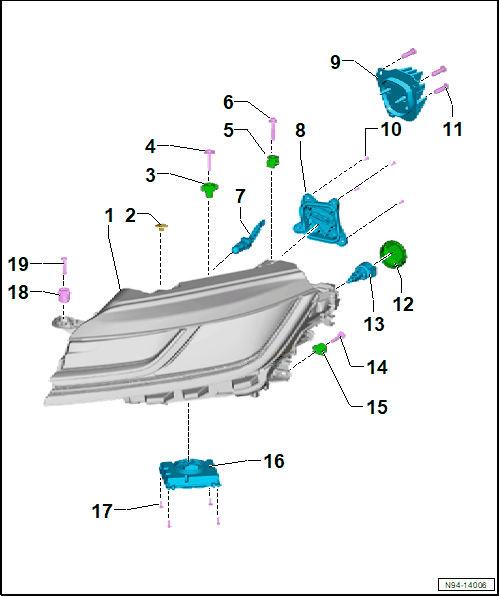

Overview - Led Headlamp Basic
WARNING: This page is about a different car, the 2023 Volkswagen Arteon. However, it is still accessible from the selected car via links, so may be relevant.
- Headlamps
- Left Front Headlamp -MX1-
- Right Front Headlamp -MX2-
- Removing and Installing. Refer to HEADLAMP, REMOVING AND INSTALLING .
- Adjusting. Refer to HEADLAMP, ADJUSTING .
- Plug in Horizontal Setting
- Market-Specific Version
- Adjusting Element
- Bolt
- 4 Nm
- Lifter
- Bolt
- 8 Nm
- Front Turn Signal Bulb
- Left Front Turn Signal Bulb -M5-
- Right Front Turn Signal Bulb -M7-
- Removing and Installing. Refer to Left Front Turn Signal Bulb -M5- /Right Front Turn Signal Bulb - M7-, REMOVING AND INSTALLING, LED HEADLAMP BASIC .
- Housing Cover
- Daytime Running Lamp and Position Lamp LED Module
- Left Daytime Running Lamp and Position Lamp LED Module -L176-
- Right Daytime Running Lamp and Position Lamp LED Module -L177-
- Removing and Installing. Refer to Left Daytime Running Lamp and Position Lamp LED Module -L176- /Right Daytime Running Lamp and Position Lamp LED Module -L177-, REMOVING AND INSTALLING .
- Bolt
- 1.5 Nm
- Quantity: 4
- Bolt
- 1.5 Nm
- Quantity: 3
- Headlamp Beam Adjustment Motor Housing Cover
- Headlamp Beam Adjustment Motor
- Left Headlamp Beam Adjustment Motor -V48-
- Right Headlamp Beam Adjustment Motor -V49-
- Removing and Installing. Refer to Left Headlamp Range Control Adjustment Motor -V48- /Right Headlamp Range Control Adjustment Motor -V49-, REMOVING AND INSTALLING .
- Bolt
- 4 Nm
- Lifter
- LED Headlamp Power Output Module 1
- Right LED Headlamp Power Output Module 1 -A27-
- Left LED Headlamp Power Output Module 1 -A31-
- Removing and Installing. Refer to Left LED Headlamp Power Output Module 1 -A31- / Right LED Headlamp Power Output Module 1 -A27-, REMOVING AND INSTALLING .
- Bolt
- 1.5 Nm
- Quantity: 4
- Banjo Bolt
- For the headlamp height adjustment
- Bolt
- 4 Nm
