Overview - Headlamp Housing Repair Kit

WARNING: This page is about a different car, the 2023 Volkswagen Arteon. However, it is still accessible from the selected car via links, so may be relevant.

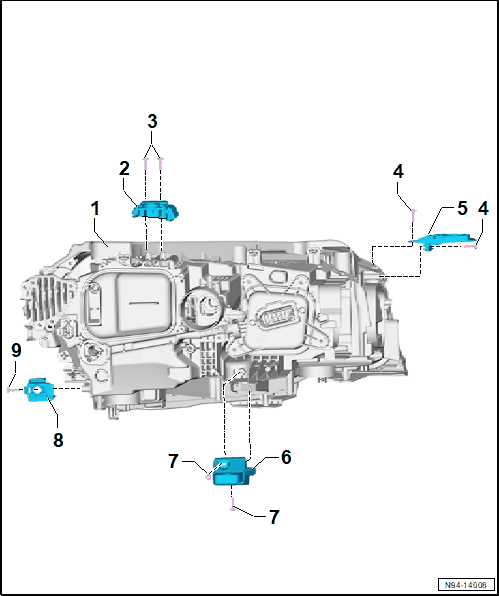

Fig 1: Exploded View Of Headlamp Housing Repair Kit
GWWN94-14008Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
  1. Headlamps
  2. Upper Mounting Tab
  3. Bolt
    • 2 Nm
    • Quantity: 2
  4. Bolt
    • 2 Nm
    • Quantity: 2
  5. Inner Mounting Tab
  6. Rear Mounting Tab
  7. Bolt
    • 2 Nm
    • Quantity: 2
  8. Outer Mounting Tab
  9. Bolt
    • 2 Nm
