Left LED Headlamp Power Output Module 1 -A31- / Right LED Headlamp Power Output Module 1 -A27-, REMOVING AND INSTALLING: Removing

WARNING: This page is about a different car, the 2023 Volkswagen Arteon. However, it is still accessible from the selected car via links, so may be relevant.

-- Remove the headlamp. Refer to HEADLAMP, REMOVING AND INSTALLING .

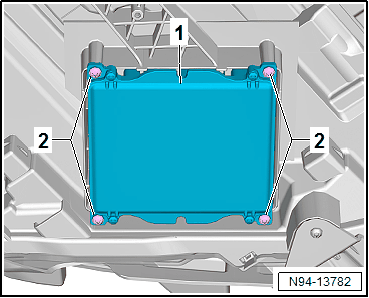

-- Remove the bolts -2-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the Left LED Headlamp Power Output Module 1 -A31- / Right LED Headlamp Power Output Module 1 -A27- -1- from the headlamp, until the connector is accessible.

-- Disconnect the connector.

-- Remove the Left LED Headlamp Power Output Module 1 -A31- / Right LED Headlamp Power Output Module 1 -A27- -1-
