Left Front Turn Signal Bulb -M5- /Right Front Turn Signal Bulb -M7-, REMOVING AND INSTALLING, LED HEADLAMPS, HIGH: Removing
WARNING: This page is about a different car, the 2023 Volkswagen Arteon. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the LED headlamp frame. Refer to LED HEADLAMP FRAME, REMOVING AND INSTALLING .

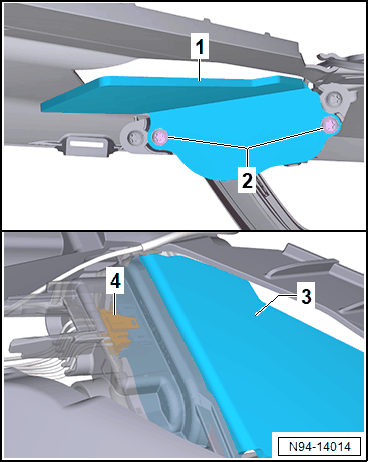

-- Remove the bolts -2-.
-- Guide out the bracket -3- with the LED module, until the connector is accessible.
-- Disconnect the connector -4-.
-- Remove the bracket -3- with the LeD module.
