Left Front Turn Signal Bulb -M5- /Right Front Turn Signal Bulb - M7-, REMOVING AND INSTALLING, LED HEADLAMP BASIC: Removing
WARNING: This page is about a different car, the 2023 Volkswagen Arteon. However, it is still accessible from the selected car via links, so may be relevant.

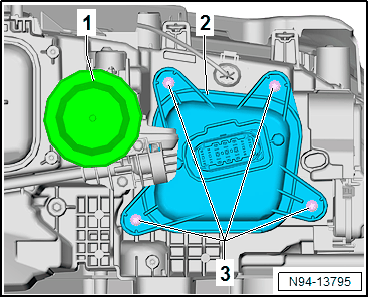

-- Remove the bolts -3-.
 Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
|
-- Remove the housing cover -2- and pivot to the side.

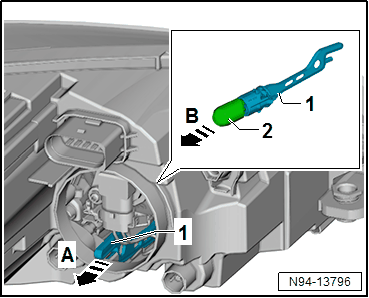

-- Remove the handle with the bulb holder -1- in direction of the -arrow A-.
 Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
|
-- Pull the Left Front Turn Signal Bulb -M5- -2- out of the bulb holder -1- in the direction of the -arrow B-.
