Left Daytime Running Lamp and Position Lamp LED Module -L176- /Right Daytime Running Lamp and Position Lamp LED Module -L177-, REMOVING AND INSTALLING: Removing

WARNING: This page is about a different car, the 2023 Volkswagen Arteon. However, it is still accessible from the selected car via links, so may be relevant.

-- Remove the headlamp. Refer to HEADLAMP, REMOVING AND INSTALLING .

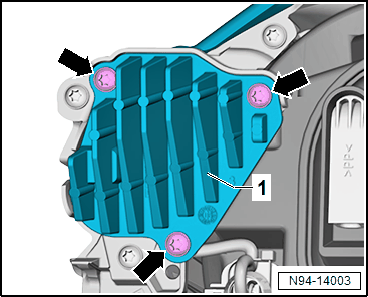

-- Remove the bolts -arrows-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Guide the Left Daytime Running Lamp and Position Lamp LED Module -L176- /Right Daytime Running Lamp and Position Lamp LED Module -L177- -1- out of the headlamp housing until the connector is accessible.

-- Disconnect the connectors.

-- Remove the Left Daytime Running Lamp and Position Lamp LED Module -L176- /Right Daytime Running Lamp and Position Lamp LED Module -L177- -1-.
