Led Headlamp Trim Molding, Removing And Installing: Removing

WARNING: This page is about a different car, the 2023 Volkswagen Arteon. However, it is still accessible from the selected car via links, so may be relevant.

-- Remove the LED headlamp frame. Refer to LED HEADLAMP FRAME, REMOVING AND INSTALLING .

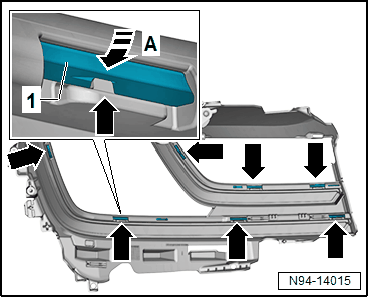

-- Release the retaining tabs -arrows- using the Removal Wedge Set:VAS895015  in the direction of the -arrow A-.

GWWN94-14015Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the trim molding -1- from the frame.
