Led Headlamp Frame, Removing And Installing: Removing

WARNING: This page is about a different car, the 2023 Volkswagen Arteon. However, it is still accessible from the selected car via links, so may be relevant.

-- Remove the headlamp. Refer to HEADLAMP, REMOVING AND INSTALLING .

-- Remove the cover trim. Refer to LED HEADLAMP COVER TRIM, REMOVING AND INSTALLING .

-- Remove the Left Daytime Running Lamp and Position Lamp LED Module -L176- /Right Daytime Running Lamp and Position Lamp LED Module -L177-. Refer to Left Daytime Running Lamp and Position Lamp LED Module -L176- /Right Daytime Running Lamp and Position Lamp LED Module -L177-, REMOVING AND INSTALLING .

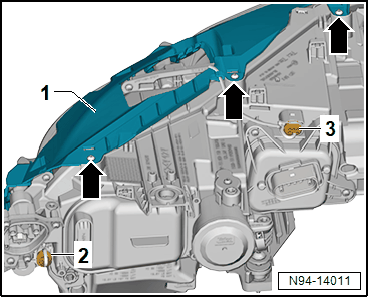

-- Remove the bolts -arrows- at the frame -1-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Disconnect the connector -2-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

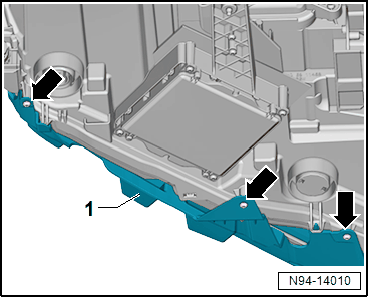

-- Remove the bolts -arrows- at the frame -1-.

Vehicles with LED Headlamps High

-- Disconnect the connector -3-.

Continuation for All Vehicles

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

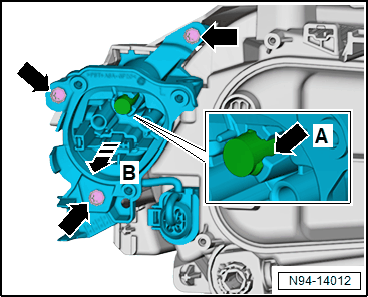

-- Remove the bolts -arrows-.

-- Release the retaining tab arrow -A-.

-- Remove the LED module housing in direction of the -arrow B-.

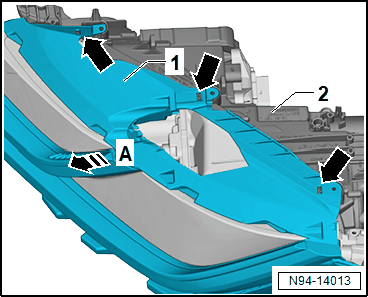

-- Release the frame retaining tabs -arrows- using Removal Wedge Set:VAS895015 .

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the frame -1- in direction of the -arrow A- from the headlamp -2-.
