Headlamp, Removing And Installing: Removing

WARNING: This page is about a different car, the 2023 Volkswagen Arteon. However, it is still accessible from the selected car via links, so may be relevant.

-- Switch off the ignition and all electrical equipment.

-- Place the ignition key and other drive authorization systems outside of the vehicle interior, to avoid an unintentional start of the vehicle.

-- Remove the front bumper cover. Refer to BUMPER COVER, REMOVING AND INSTALLING .

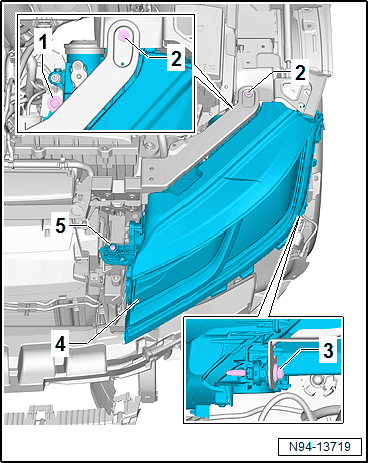

-- Loosen the bolt -1- several turns.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the bolts -2, 3 and 5-.

-- Disconnect the connector at the headlamp -4-.

-- Remove the headlamp -4-.
