Windshield Wiper Motor -V-, REMOVING AND INSTALLING: Removing
WARNING: This page is about a different car, the 2023 Volkswagen Arteon. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the left plenum chamber cover. Refer to PLENUM CHAMBER COVER, REMOVING AND INSTALLING .

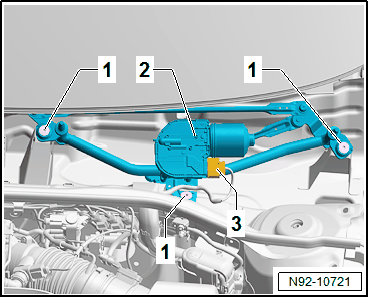

-- Remove the bolts -1-.
-- Disconnect the connector -3-.
-- Release the connectors from the windshield wiper frame -2-.
-- Remove the windshield wiper frame with the windshield wiper motor -2- from the plenum chamber.
