Windshield Washer Pump, Removing And Installing, Washer Fluid Reservoir In Front Right Wheel Housing: Removing
WARNING: This page is about a different car, the 2023 Volkswagen Arteon. However, it is still accessible from the selected car via links, so may be relevant.

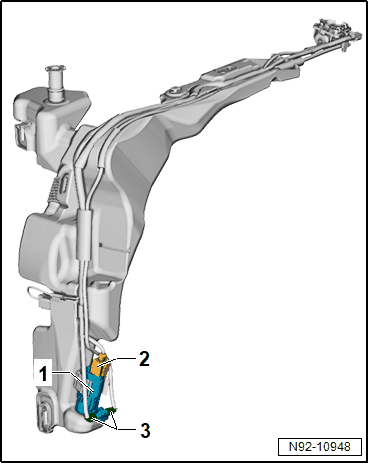

-- Remove the washer fluid reservoir. Refer to WASHER FLUID RESERVOIR, REMOVING AND INSTALLING, WASHER FLUID RESERVOIR IN FRONT RIGHT WHEEL HOUSING .
-- Disconnect the connector -2-.
-- Disengage and disconnect the washer fluid hoses -3-.
-- Remove the Windshield and Rear Window Washer Pump -V59- -1- upward.
