Windshield Washer Pump, Removing And Installing, Washer Fluid Reservoir In Front Left Wheel Housing: Removing
WARNING: This page is about a different car, the 2023 Volkswagen Arteon. However, it is still accessible from the selected car via links, so may be relevant.

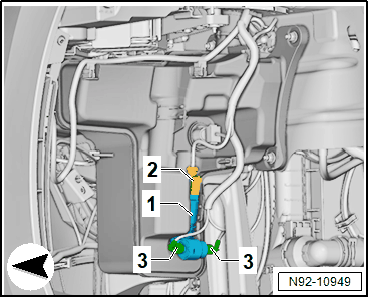

-- Place the commercially available collecting device under the washer fluid reservoir.
-- Remove the front sections of the left front wheel housing liner. Refer to FRONT WHEEL HOUSING LINER, REMOVING AND INSTALLING .
-- Disconnect the connector -2-.
-- Release and remove the washer fluid hoses -3-.
-- Remove the Windshield and Rear Window Washer Pump -V59- -1- upward.
