Washer Nozzles, Removing And Installing: Removing

WARNING: This page is about a different car, the 2023 Volkswagen Arteon. However, it is still accessible from the selected car via links, so may be relevant.

-- Open the hood.

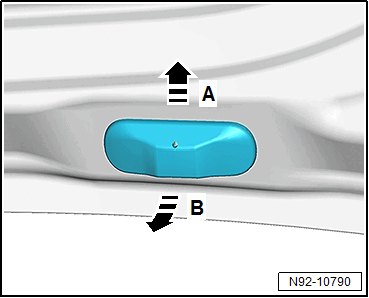

-- Push the washer nozzle upward in the direction of the -arrow A-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Pivot out the washer nozzle downward out of the hood in the direction of -arrow B-.

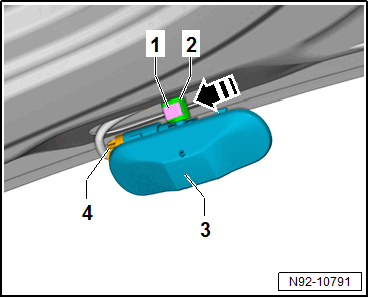

-- Release the clamp -1- in the direction of -arrow-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the washer fluid hose connection -2-.

-- Disconnect the connector -4-.

-- Remove the washer nozzle -3-.
