Overview - Windshield Washer System, Washer Fluid Reservoir In Left Front Wheel Housing

WARNING: This page is about a different car, the 2023 Volkswagen Arteon. However, it is still accessible from the selected car via links, so may be relevant.

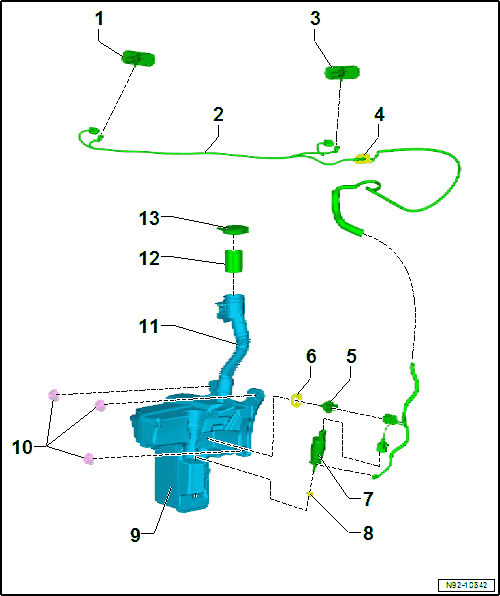

Fig 1: Exploded View Of Washer Fluid Reservoir (In Left Front Wheel Housing)

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Right Washer Nozzle
- Versions with Right Washer Nozzle Heater -Z21-
- Removing and Installing. Refer to WASHER NOZZLES, REMOVING AND INSTALLING .
- Adjusting. Refer to WASHER NOZZLES, ADJUSTING .
Washer Fluid Hose for Windshield Washer System
Left Washer Nozzle
- Versions with Left Washer Nozzle Heater -Z20-
- Removing and Installing. Refer to WASHER NOZZLES, REMOVING AND INSTALLING .
- Adjusting. Refer to WASHER NOZZLES, ADJUSTING .
Washer Fluid Hose Grommet in Hood
Windshield Washer Fluid Level Sensor -G33-
- Replaceable individually, depending on vehicle equipment
- Removing and Installing. Refer to WINDSHIELD WASHER FLUID LEVEL SENSOR, REMOVING AND INSTALLING, WASHER FLUID RESERVOIR IN FRONT LEFT WHEEL HOUSING .
Seal
Windshield and Rear Window Washer Pump -V59-
- Removing and Installing. Refer to WINDSHIELD WASHER PUMP, REMOVING AND INSTALLING, WASHER FLUID RESERVOIR IN FRONT LEFT WHEEL HOUSING .
Grommet
Washer Fluid Reservoir
- Removing and Installing. Refer to WASHER FLUID RESERVOIR, REMOVING AND INSTALLING, WASHER FLUID RESERVOIR IN FRONT LEFT WHEEL HOUSING .
Nut
- 8 Nm
- Quantity: 3
Filler Tube for Washer Fluid Reservoir
Screen
Cap for Filler Neck
