Overview - Windshield Washer System, Washer Fluid Reservoir In Front Right Wheel Housing

WARNING: This page is about a different car, the 2023 Volkswagen Arteon. However, it is still accessible from the selected car via links, so may be relevant.

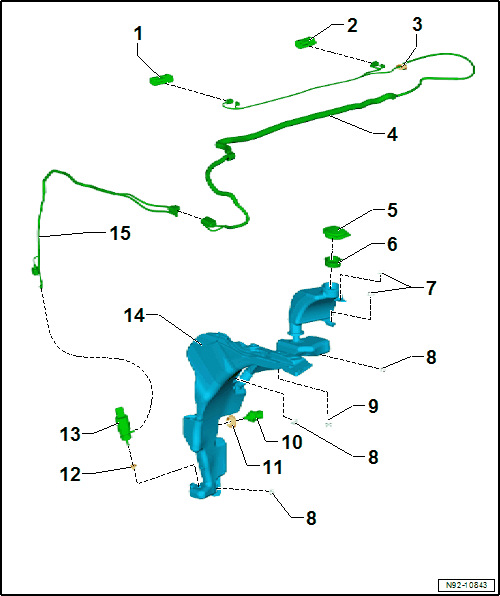

Fig 1: Exploded View Of Washer Fluid Reservoir (In Front Right Wheel Housing)

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Right Washer Nozzle
- Versions with Right Washer Nozzle Heater -Z21-
- Removing and Installing. Refer to WASHER NOZZLES, REMOVING AND INSTALLING .
- Adjusting. Refer to WASHER NOZZLES, ADJUSTING .
Left Washer Nozzle
- Versions with Left Washer Nozzle Heater -Z20-
- Removing and Installing. Refer to WASHER NOZZLES, REMOVING AND INSTALLING .
- Adjusting. Refer to WASHER NOZZLES, ADJUSTING .
Washer Fluid Hose Grommet in Hood
Washer Fluid Hose for Windshield Washer System
- In the engine compartment
Cap for Filler Neck
Screen
Nut
- 8 Nm
- Quantity: 2
Nut
- 8 Nm
- Quantity: 3
Bolt
- 8 Nm
Windshield Washer Fluid Level Sensor -G33-
- Removing and Installing. Refer to WINDSHIELD WASHER FLUID LEVEL SENSOR, REMOVING AND INSTALLING, WASHER FLUID RESERVOIR IN FRONT RIGHT WHEEL HOUSING .
Seal
Grommet
Windshield and Rear Window Washer Pump -V59-
- Removing and Installing. Refer to WINDSHIELD WASHER PUMP, REMOVING AND INSTALLING, WASHER FLUID RESERVOIR IN FRONT LEFT WHEEL HOUSING .
Washer Fluid Reservoir
- With filler neck
- Removing and Installing. Refer to WASHER FLUID RESERVOIR, REMOVING AND INSTALLING, WASHER FLUID RESERVOIR IN FRONT RIGHT WHEEL HOUSING .
Washer Fluid Hose for Windshield Washer System
- On washer fluid reservoir
