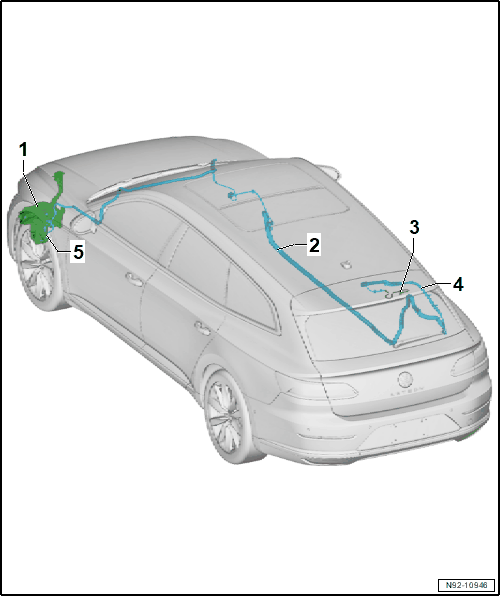

Overview - Rear Window Washer System, Washer Fluid Reservoir In Front Left Wheel Housing
WARNING: This page is about a different car, the 2023 Volkswagen Arteon. However, it is still accessible from the selected car via links, so may be relevant.
- Washer Fluid Reservoir
- Removing and Installing. Refer to WASHER FLUID RESERVOIR, REMOVING AND INSTALLING .
- Washer Fluid Hose
- In the sill to the washer nozzle of the rear window washer system.
- Washer Nozzle
- The washer nozzle is integrated into the engine compartment lid spoiler and can not be removed individually.
- Removing and installing. Refer to SPOILER, REMOVING AND INSTALLING .
- Adjusting. Refer to WASHER NOZZLE, ADJUSTING .
- Washer Fluid Hose
- In the right side panel to the rear window washer system spray nozzle.
- Windshield and Rear Window Washer Pump -V59-
- With grommet.
- Removing and Installing. Refer to WINDSHIELD WASHER PUMP, REMOVING AND INSTALLING .
