Wheel Bearing Unit, Removing And Installing, Multi-Link Suspension, Fwd: Installing

WARNING: This page is about a different car, the 2023 Volkswagen Arteon. However, it is still accessible from the selected car via links, so may be relevant.

Install in the reverse order of removal while noting the following:

-- Carefully install the wheel hub/wheel bearing unit -2- onto the stub axle.

Fig 1: Identifying Wheel Hub/ Bearing Unit

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

CAUTION:

Make sure that the wheel hubs/wheel bearing unit does not tilt!

-- Install the new bolt -1- and tighten it to the tightening specification.

NOTE:

First tighten the bolt to the specification using the torque wrench.

Use a rigid wrench when tightening additionally.

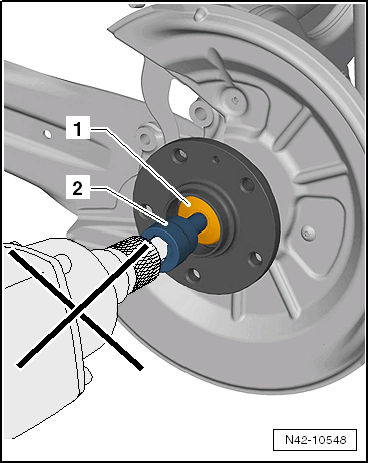

Fig 2: Never Use An Impact Wrench On Bolt -1- Using Bit XZN 18 T10162 -2-

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

CAUTION:

Never use an impact wrench when tightening the bolt -1- using the Socket - XZN 18mm:T10162 A -2-.

-- Install a new dust cap.

Fig 3: Dust Cap

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Seal Installer - Camshaft Installer Kit - Sleeve:3241/4

-- Always replace dust caps.

CAUTION:

Damaged dust caps allow moisture to enter. Therefore, always use the tool shown.
