Spring, Removing And Installing: Notes

WARNING: This page is about a different car, the 2023 Volkswagen Arteon. However, it is still accessible from the selected car via links, so may be relevant.

Special tools and workshop equipment required

Tensioning Strap:T10038

Fig 1: Identifying Tensioning Strap T10038
Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

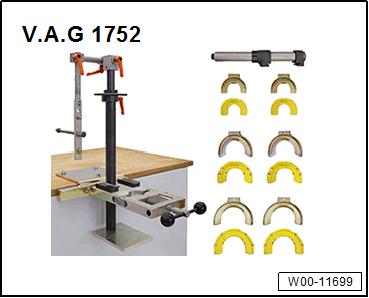

Spring Compressor Kit:V.A.G 1752

Fig 2: Spring Compressor Kit
Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
Engine and Gearbox Jack:VAS 6931

Fig 3: Engine and Gearbox Jack VAS6931 or VAG1383A
Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
