Spring, Removing And Installing: Installing

Install in the reverse order of removal while noting the following:

-- Make sure the washer is not damaged.

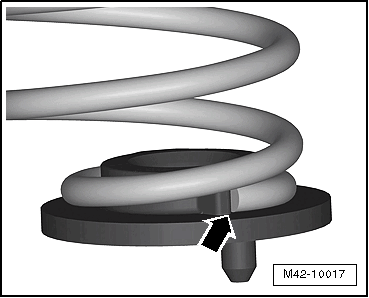

Fig 1: Identifying Spring Start Touching Spring Seat

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Replace the washer if necessary.

-- Install the washer on the lower spring.

The spring start -arrow- must touch the stop of lower spring support.

-- Install the spring and the spring support.

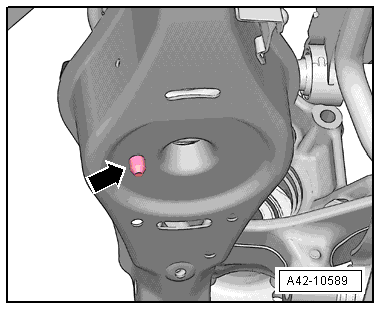

-- The lower spring support has a pin.

-- Insert this pin into hole of lower transverse link -arrow-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Insert the top of the spring support into the upper spring end.

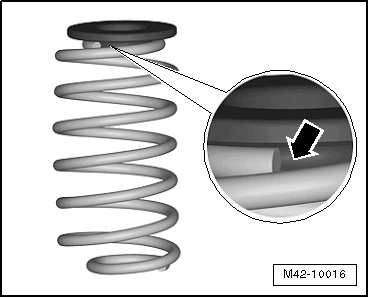

Fig 2: Locating Spring Support Bead

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- The bead on the spring support -arrow- must fit into the spring correctly.

-- Place the Engine and Gearbox Jack:VAS 6931  under the lower transverse link and push upward.

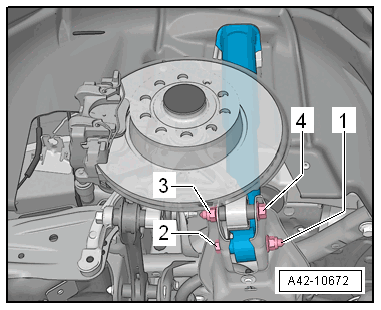

-- Insert the bolt -4- for connecting the wheel bearing housing and tighten the nut -3-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Insert the bolt -2- for connecting the shock absorber and tighten the nut -1-.

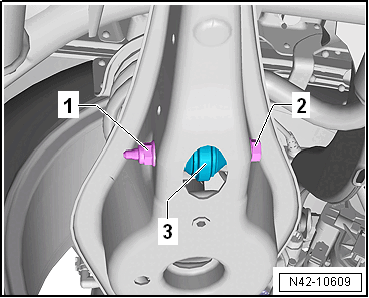

-- Insert the bolt -2- for the coupling rod -3- and tighten the nut -1-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

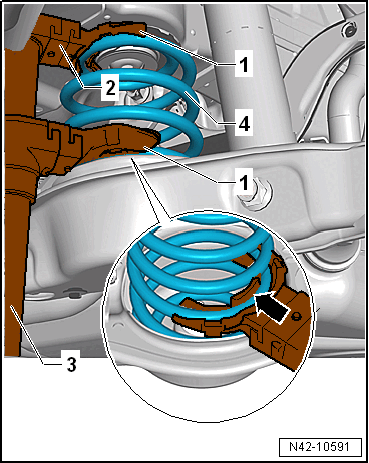

-- Release the tension of the spring -4-. At the same time, place the upper spring support on the body tab.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the Spring Tensioner -3-.

1. Spring Compressor Kit - Spring Retainer with Inserts:V.A.G 1752/3A
2. Spring Compressor Kit - Adapter Blocks:V.A.G 1752/9
3. Spring Compressor Kit - Spring Tensioner:V.A.G 1752/1
4. Spring
