Shock Absorber, Servicing

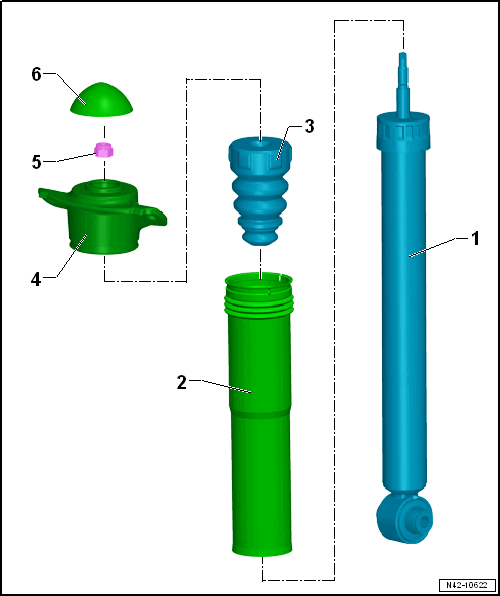

Fig 1: Exploded View Of Shock Absorber

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

1. Shock Absorber
   • Removing and Installing. Refer to SHOCK ABSORBER, REMOVING AND INSTALLING .
   • Always vent and drain faulty shock absorbers before disposal. Refer to DISPOSAL .
   • Shock Absorber, Checking. Refer to REPAIR INFORMATION .
2. Protective Pipe
3. Stop Buffer
4. Shock Absorber Mount
5. Nut
   • Always replace after removing
   • Loosening and tightening. Refer to Fig 3
   • 25 Nm
6. Cover

Special tools and workshop equipment required

• Shock Absorber Set:T10001
  Fig 2: 18 mm socket from the Shock Absorber Set

  Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Shock Absorber Mount Threaded Connection, Loosening and Tightening

Fig 3: Shock Absorber Mount Threaded Connection, Loosening and Tightening

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

1. Ring Insert Tool, Commercially Available
2. Shock Absorber Set - Extension with Counter Holder 1:T10001/9
3. Commercially Available Ratchet
4. Shock Absorber Set - Socket:T10001/1
5. Shock Absorber Mount

Install in the reverse order of removal while noting the following:

-- Slide the protective pipe -1- onto the shock absorber mount -2-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Install and tighten the cable tie -3-.

Tightening Specifications

• Refer to SHOCK ABSORBER, SERVICING
