Coupling Rod, Removing And Installing: Installing

WARNING: This page is about a different car, the 2023 Volkswagen Arteon. However, it is still accessible from the selected car via links, so may be relevant.

Install in the reverse order of removal while noting the following:

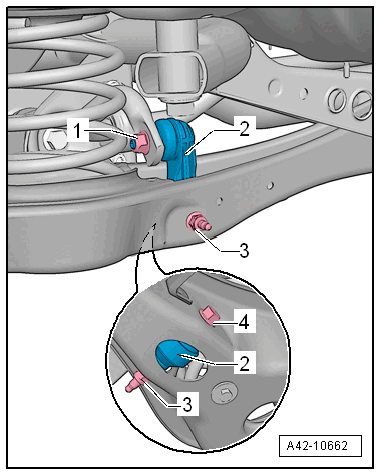

-- Insert the coupling rod -2-, install the nuts -1- and -3- and tighten in curb weight position. Refer to WHEEL BEARING IN CURB WEIGHT POSITION, LIFTING VEHICLES WITH COIL SPRING .

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- When tightening the nut -1-, counterhold at the inner multi-point fitting of the bolt.
