SUBFRAME, Securing, AWD

WARNING: This page is about a different car, the 2023 Volkswagen Arteon. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

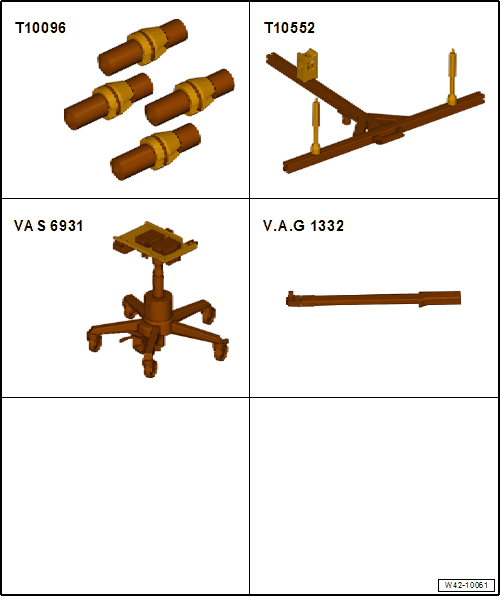

Special tools and workshop equipment required

Locating Pins:T10096
Rear Axle Support:T10552
Engine and Gearbox Jack:VAS 6931

Rear Axle Support:T10552 , Preparing

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Loosen the bolts -arrows- and adjust the dimension -a-.

a - 250 mm

Tighten the bolts -arrows-.

-- Loosen the bolt -arrow- for the Rear Axle Support - Support:T10552/2 -2-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Turn the Rear Axle Support - Support:T10552/2 -2- so that the profile is in the direction of travel.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Adjust the dimension -b-.

b - 410 mm

Tighten the bolt -arrow- to 30 Nm.

-- Loosen the Rear Axle Support - Mounting Pin:T10552/1 -3- on both sides at the bottom.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Adjust the dimension -c-.

c - 47 mm

-- Turn the Rear Axle Support - Mounting Pin Threaded Sleeve:T10552/1 -3- on both sides until the dimension -d- is set.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

d - 215 mm

-- Place the Rear Axle Support:T10552 -1- on the Engine and Gearbox Jack:VAS 6931 .

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Tighten the bolt -arrow- to 30 Nm.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Position the Rear Axle Support:T10552 -1- together with the Engine and Gearbox Jack:VAS 6931 -5- below the rear axle and move upward.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Insert the Rear Axle Support - Mounting Pins:T10552/1 -2- into the holes on the rear axle -A arrows-.

-- Secure the Support:T10552/2 -3- to the rear axle using the Tensioning Strap -4-.

Locating Pins:T10096 , Installing

To secure the subframe, the Locating Pins:T10096 must be installed at the positions -1- one after the other on both sides of the vehicle.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove a hex bolt -1- from both sides.

NOTE:

For clarity only the left side of the vehicle is shown.

-- Install the Locating Pins:T10096 -1-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

NOTE:

Locating Pins:T10096 may only be tightened to a maximum of 20 Nm, otherwise the threads on the locating pins will be damaged.

-- Replace the bolts on the subframe one after the other with the Locating Pins:T10096 -1- on both sides and tighten to 20 Nm.

The subframe position is now secured.
