Rear Axle Trim Panel, Removing And Installing: Installing
WARNING: This page is about a different car, the 2023 Volkswagen Arteon. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
|

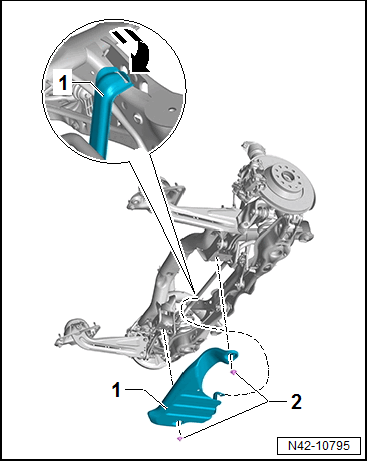

-- Pivot the trim panel -1- in the -direction of the arrow- and engage on the top of the subframe.
-- Tighten the nuts -2-.
CAUTION:
After installing the heat shield, make sure the tabs on the trim panel -2- are properly engaged in the subframe -arrow-.
