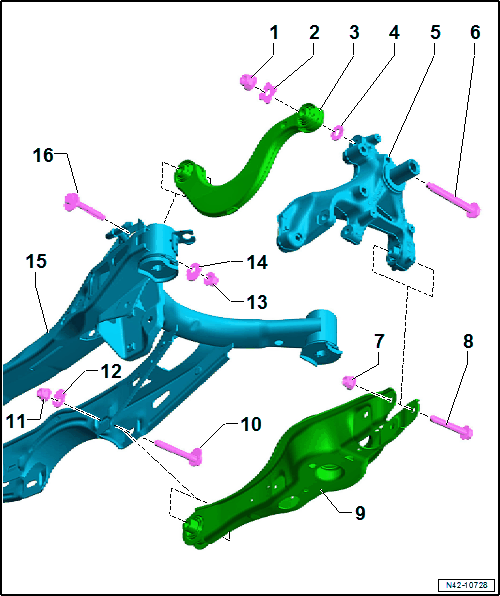

Overview - Transverse Link, Multi-Link Suspension, Fwd
WARNING: This page is about a different car, the 2023 Volkswagen Arteon. However, it is still accessible from the selected car via links, so may be relevant.
- Nut
- Always replace after removing
- Washer
- Upper Transverse Link
- Removing and Installing. Refer to UPPER TRANSVERSE LINK, REMOVING AND INSTALLING .
- Washer
- Wheel Bearing Housing
- Bolt
- Always replace after removing
- Always tighten the threaded connections in curb weight position. Refer to WHEEL BEARING IN CURB WEIGHT POSITION, LIFTING VEHICLES WITH COIL SPRING .
- 130 Nm + 180°
- Nut
- Always replace after removing
- Bolt
- Always replace after removing
- Always tighten the threaded connections in curb weight position. Refer to WHEEL BEARING IN CURB WEIGHT POSITION, LIFTING VEHICLES WITH COIL SPRING .
- 70 Nm + 180°
- Lower Transverse Link
- Removing and Installing. Refer to LOWER TRANSVERSE LINK, REMOVING AND INSTALLING .
- Eccentric Screw
- Perform a vehicle alignment after loosening. Refer to AXLE ALIGNMENT .
- Do not turn more than 90° right or left (that is smallest to largest possible adjustment)
- Nut
- Always replace after removing
- Always tighten the threaded connections in curb weight position. Refer to WHEEL BEARING IN CURB WEIGHT POSITION, LIFTING VEHICLES WITH COIL SPRING .
- 95 Nm
- Eccentric Washer
- Inner hole with tab
- Nut
- Always replace after removing
- Always tighten the threaded connections in curb weight position. Refer to WHEEL BEARING IN CURB WEIGHT POSITION, LIFTING VEHICLES WITH COIL SPRING .
- 95 Nm
- Eccentric Washer
- Inner hole with tab
- Subframe
- Eccentric Screw
- Perform a vehicle alignment after loosening. Refer to AXLE ALIGNMENT .
- Do not turn more than 90° right or left (that is smallest to largest possible adjustment)
