Left Rear Body Acceleration Sensor -G699-, REMOVING AND INSTALLING, ARTEON: Installing

WARNING: This page is about a different car, the 2023 Volkswagen Arteon. However, it is still accessible from the selected car via links, so may be relevant.

Install in the reverse order of removal while noting the following:

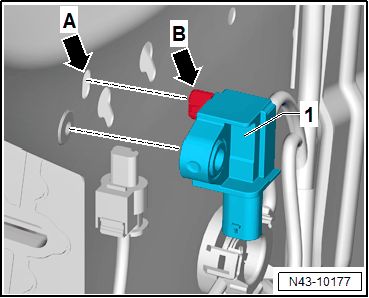

-- Insert the Rear Body Acceleration Sensor -G343- -1- so that the tab -arrow B- engages in the hole -arrow A-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

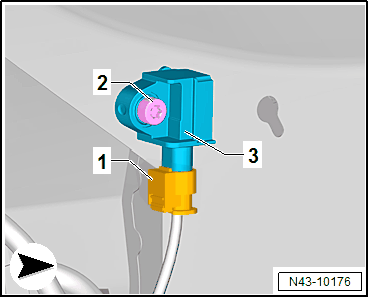

-- Tighten the Rear Body Acceleration Sensor -G343- -3- with the bolt -2-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Connect the connector -1- until it clicks into place.

-- Perform the basic setting for the wheel damping electronics. Use the Vehicle Diagnostic Tester.
