Left And Right Front Body Acceleration Sensor -G341- / -G342-, Removing And Installing: Installing
WARNING: This page is about a different car, the 2023 Volkswagen Arteon. However, it is still accessible from the selected car via links, so may be relevant.
Install in the reverse order of removal while noting the following:

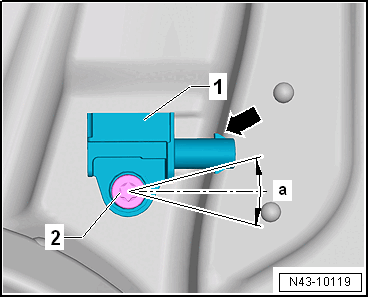

-- Insert the Front Body Acceleration Sensor -- -1- so that the connector connection -arrow- faces opposite the direction of travel.
-- Secure the Front Body Acceleration Sensor -- -1- with the bolt -2-.
Installation position: angle tolerance -a- is ±10°. The installation position of the Front Body Acceleration Sensor -- may deviate around this angle from the vehicle longitudinal axis.
-- Perform the basic setting for the wheel damping electronics. Use the Vehicle Diagnostic Tester.
