Overview - Steering Wheel

WARNING: This page is about a different car, the 2023 Volkswagen Arteon. However, it is still accessible from the selected car via links, so may be relevant.

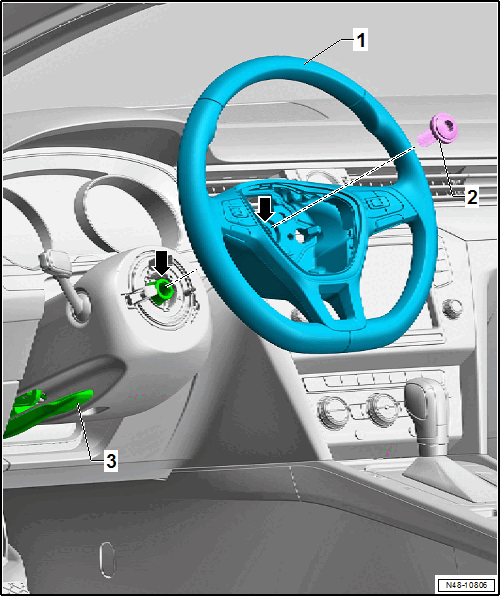

Fig 1: Exploded View Of Steering Wheel
GWWN48-10806Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
  1. Steering Wheel
    • Removing and Installing. Refer to STEERING WHEEL, REMOVING AND INSTALLING .
    • There are different versions. Refer to the appropriate Electronic Parts Information for the allocation.
    • The punch points -arrows- on the steering wheel and steering column must be aligned with each other when positioning. Several steering columns are not equipped with a punch point at the factory. For these steering columns, an appropriate punch point must be set before removing the steering wheel. Refer to STEERING WHEEL, REMOVING AND INSTALLING .
  2. Bolt
    • Always replace after removing
    • 30 Nm + 90°
  3. Steering Column
    • Removing and Installing. Refer to STEERING COLUMN, REMOVING AND INSTALLING .
    • The punch points -arrows- on the steering wheel and steering column must be aligned with each other when positioning. Several steering columns are not equipped with a punch point at the factory. For these steering columns, an appropriate punch point must be set before removing the steering wheel. Refer to STEERING WHEEL, REMOVING AND INSTALLING .
