Tie Rod End, Removing And Installing: Installing

WARNING: This page is about a different car, the 2023 Volkswagen Arteon. However, it is still accessible from the selected car via links, so may be relevant.

Install in the reverse order of removal while noting the following:

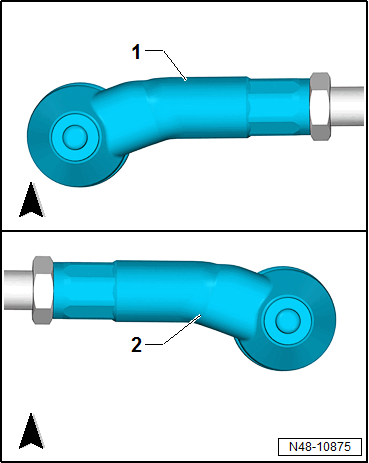

-- Make sure the correct tie rod end is installed on each side.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Left Tie Rod End
Right Tie Rod End

-- Turn the tie rod end to marking made earlier on the tie rod and secure it with a locking nut.

-- Install the tie rod end into the wheel bearing housing.

-- Install the tie rod end with a new nut.

-- Install the wheel and tighten.

-- Perform a vehicle alignment. Refer to AXLE ALIGNMENT PROCEDURE .
