Threaded Bushing, Removing And Installing: Installing

WARNING: This page is about a different car, the 2023 Volkswagen Arteon. However, it is still accessible from the selected car via links, so may be relevant.

Install in the reverse order of removal while noting the following:

CAUTION:

Always drive out the threaded bushing from above in the direction of the steering shaft.

-- Insert the threaded bushing in straight.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Drive in the threaded bushing all the way.

-- Always make sure the intermediate plate -1- is installed between the subframe -2- and the body.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

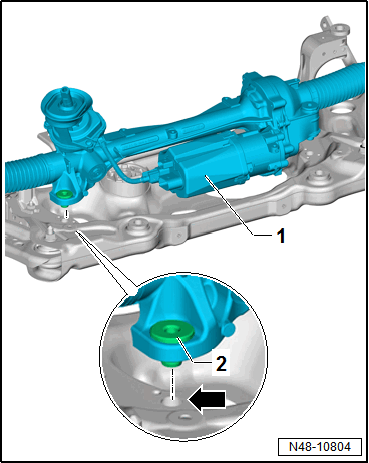

-- Position the steering gear -1- on the subframe.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Insert the steering gear threaded sleeves -2- into the subframe holes -arrow-.

-- For vehicles with a level control system sensor, perform the basic setting using the Vehicle Diagnostic Tester.
