Anti-Theft Wheel Bolt Positioning On Steel Wheels
WARNING: This page is about a different car, the 2023 Volkswagen Arteon. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
The full wheel cover can become loose while driving and fall off.
- Install the anti-theft wheel bolt at the correct position.
- Otherwise the secure fit and centering of the full wheel cover is not ensured.

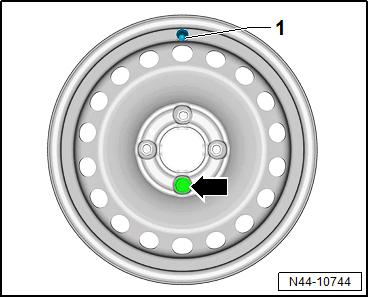

Steel wheels with four holes
The anti-theft wheel bolt -arrow- must only be installed across from the valve -1-.
The decorative wheel hubcap can be installed on the steel wheel securely only when the anti-theft wheel bolt is installed in this position.

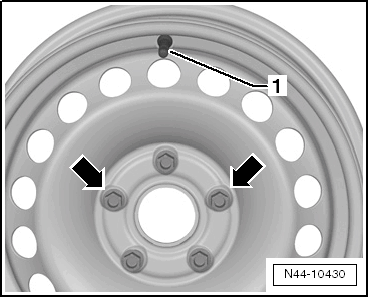

Steel wheels with five holes
The anti-theft wheel bolt must be installed either to the right or to the left -arrows- of the valve -1- on steel wheels.
The decorative wheel hubcap can be installed on the steel wheel securely only when the anti-theft wheel bolt is installed in this position.
