Component Location Overview - Tire Pressure Monitoring System, Trigger

WARNING: This page is about a different car, the 2023 Volkswagen Arteon. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

The target pressures are stored in the Tire Pressure Monitoring Control Module -J502- and only need to be changed if the wheel dimensions have changed, for example if different summer or winter tires are installed. The system automatically learns new or different wheel electronics.

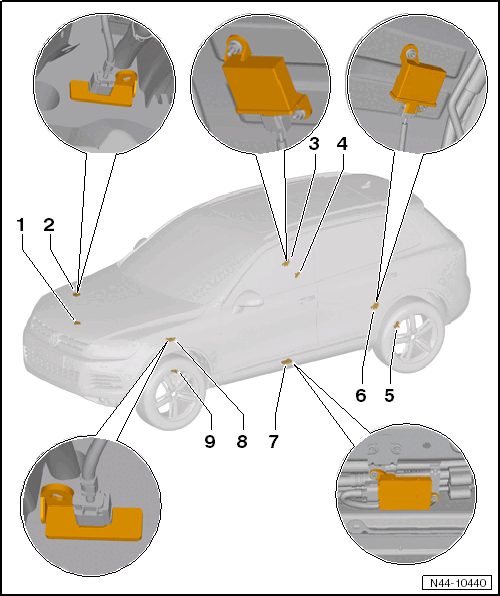

Fig 1: Tire Pressure Monitoring System Component Overview

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Right Front Tire Pressure Monitoring Sensor -G223-
- Removing and Installing. Refer to TIRE PRESSURE MONITORING SENSOR, REMOVING AND INSTALLING, WITHOUT VALVE, VERSION 1, SERVICE VERSION .
Right Front Tire Pressure Monitoring Transmitter In Wheel Housing -G432-
- Removing and Installing. Refer to FRONT TRANSMITTER IN WHEEL HOUSING FOR TIRE PRESSURE MONITORING SYSTEM -G431- / -G432-, REMOVING AND INSTALLING, TOUAREG MY 2010 AND TOUAREG MY 2015 .
- Component location: behind the wheel housing liner in the insulation between the fender and the longitudinal member
Right Rear Tire Pressure Monitoring Transmitter in Wheel Housing -G434-
- Removing and Installing. Refer to REAR TRANSMITTER IN WHEEL HOUSING FOR TIRE PRESSURE MONITORING SYSTEM -G433- / -G434-, REMOVING AND INSTALLING, TOUAREG 2010, TOUAREG 2015 .
- Component location: behind the wheel housing liner in the direction of travel
Right Rear Tire Pressure Monitoring Sensor -G225-
- Removing and Installing. Refer to TIRE PRESSURE MONITORING SENSOR, REMOVING AND INSTALLING, WITHOUT VALVE, VERSION 1, SERVICE VERSION .
Left Rear Tire Pressure Monitoring Sensor -G224-
- Removing and Installing. Refer to TIRE PRESSURE MONITORING SENSOR, REMOVING AND INSTALLING, WITHOUT VALVE, VERSION 1, SERVICE VERSION .
Left Rear Tire Pressure Monitoring Transmitter in Wheel Housing -G433-
- Removing and Installing. Refer to REAR TRANSMITTER IN WHEEL HOUSING FOR TIRE PRESSURE MONITORING SYSTEM -G433- / -G434-, REMOVING AND INSTALLING, TOUAREG 2010, TOUAREG 2015 .
- Component location: behind the wheel housing liner in the direction of travel
Tire Pressure Monitoring Control Module -J502-
- Removing and Installing. Refer to Tire Pressure Monitoring Control Module -J502-, REMOVING AND INSTALLING .
- Component location: bolted to the left sill under the B-pillar
Left Front Tire Pressure Monitoring Transmitter in Wheel Housing -G431-
- Removing and Installing. Refer to FRONT TRANSMITTER IN WHEEL HOUSING FOR TIRE PRESSURE MONITORING SYSTEM -G431- / -G432-, REMOVING AND INSTALLING, TOUAREG MY 2010 AND TOUAREG MY 2015 .
- Component location: behind the wheel housing liner in the insulation between the fender and the longitudinal member
Left Front Tire Pressure Monitoring Sensor -G222-
- Removing and Installing. Refer to TIRE PRESSURE MONITORING SENSOR, REMOVING AND INSTALLING, WITHOUT VALVE, VERSION 1, SERVICE VERSION .
