Component Location Overview - Tire Pressure Monitoring System, Auto Location

WARNING: This page is about a different car, the 2023 Volkswagen Arteon. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

The target pressures are stored in the Tire Pressure Monitoring Control Module -J502- and only need to be changed if the wheel dimensions have changed, for example if different summer or winter tires are installed. The system automatically learns new or different wheel electronics.

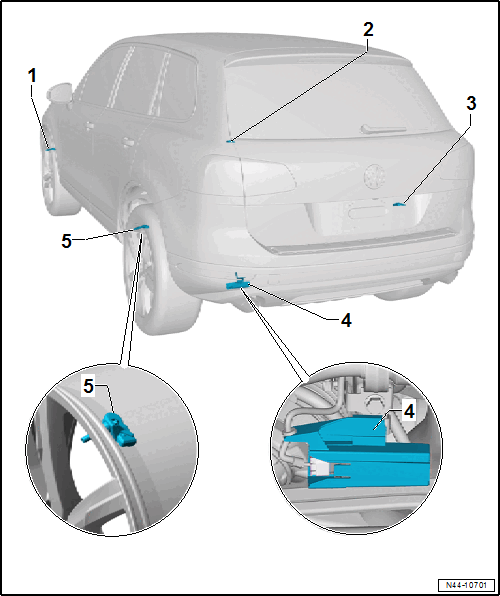

Fig 1: Tire Pressure Monitoring System (TPMS) Components Location (Auto Location)

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Left Front Tire Pressure Monitoring Sensor -G222-
- Removing and Installing. Refer to TIRE PRESSURE MONITORING SENSORS -G222- / -G223- / -G224- / -G225-, REMOVING AND INSTALLING .
Right Front Tire Pressure Monitoring Sensor -G223-
- Removing and Installing. Refer to TIRE PRESSURE MONITORING SENSORS -G222- / -G223- / -G224- / -G225-, REMOVING AND INSTALLING .
Right Rear Tire Pressure Monitoring Sensor -G225-
- Removing and Installing. Refer to TIRE PRESSURE MONITORING SENSORS -G222- / -G223- / -G224- / -G225-, REMOVING AND INSTALLING .
Tire Pressure Monitoring Control Module -J502-
- Removing and Installing. Refer to Tire Pressure Monitoring Control Module -J502-, REMOVING AND INSTALLING, FROM MY 2015, TOUAREG MY 2015 .
- Component location: on the left stabilizer bar clamp of the rear axle
Left Rear Tire Pressure Monitoring Sensor -G224-
- Removing and Installing. Refer to TIRE PRESSURE MONITORING SENSORS -G222- / -G223- / -G224- / -G225-, REMOVING AND INSTALLING .
