Component Location Overview - Tire Pressure Monitoring System (TPMS) With Auto-Location
WARNING: This page is about a different car, the 2023 Volkswagen Arteon. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
The vehicle shown in the illustration is representative of all vehicles with the tire pressure monitoring system (TPMS) with Auto-location. It only serves to illustrate the component locations.

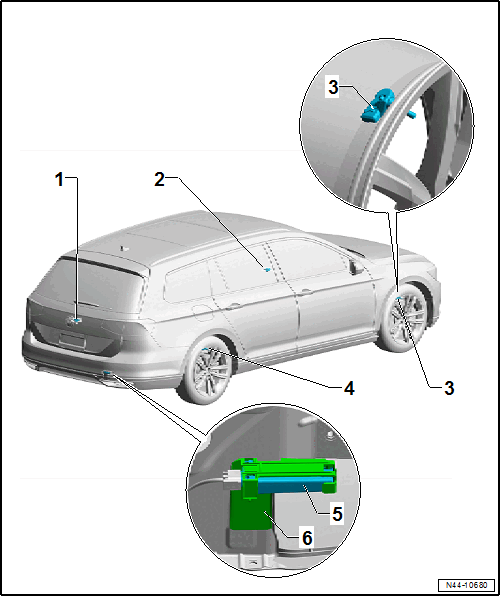

- Left Rear Tire Pressure Monitoring Sensor -G224-
- Removing and Installing. Refer to TIRE PRESSURE MONITORING SENSORS -G222- / -G223- / -G224- / -G225-, REMOVING AND INSTALLING .
- Left Front Tire Pressure Monitoring Sensor -G222-
- Removing and Installing. Refer to TIRE PRESSURE MONITORING SENSORS -G222- / -G223- / -G224- / -G225-, REMOVING AND INSTALLING .
- Right Front Tire Pressure Monitoring Sensor -G223-
- Removing and Installing. Refer to TIRE PRESSURE MONITORING SENSORS -G222- / -G223- / -G224- / -G225-, REMOVING AND INSTALLING .
- Right Rear Tire Pressure Monitoring Sensor -G225-
- Removing and Installing. Refer to TIRE PRESSURE MONITORING SENSORS -G222- / -G223- / -G224- / -G225-, REMOVING AND INSTALLING .
- Tire Pressure Monitoring Control Module -J502-
- Removing and Installing. Refer to Tire Pressure Monitoring Control Module -J502-, REMOVING AND INSTALLING .
- Component location: on the right rear back panel
- Bracket for Tire Pressure Monitoring Control Module -J502-
- Removing and Installing. Refer to Tire Pressure Monitoring Control Module -J502-, REMOVING AND INSTALLING .
