Right Seal On Transmission, Replacing, AWD Vehicles: Installing

WARNING: This page is about a different car, the 2023 Volkswagen Arteon. However, it is still accessible from the selected car via links, so may be relevant.

Install in reverse order of removal.

Before installing coat the sealing lips of the seal and the spaces between them with Radial Shaft Seal Sealing Grease:G 052 128 A1 and the outer edge with oil.

Fig 1: Identifying Oil Seal

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Installation position:

The open side of the seal faces the transmission.

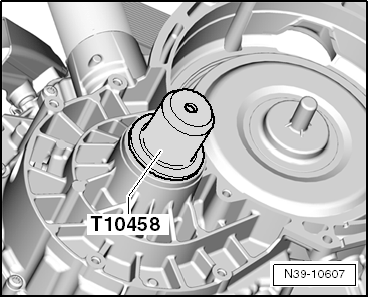

-- Install the seal all the way using Thrust Piece:T10458 . Do not tilt the seal.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Install the bevel box. Refer to BEVEL BOX, REMOVING AND INSTALLING .

-- Check the transmission fluid level. Refer to TRANSMISSION FLUID LEVEL, CHECKING .
