Output Flange, Removing And Installing, 0FN: Notes

WARNING: This page is about a different car, the 2023 Volkswagen Arteon. However, it is still accessible from the selected car via links, so may be relevant.

Characteristics of the bevel box. Refer to BEVEL BOX, DIFFERENTIATING .

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

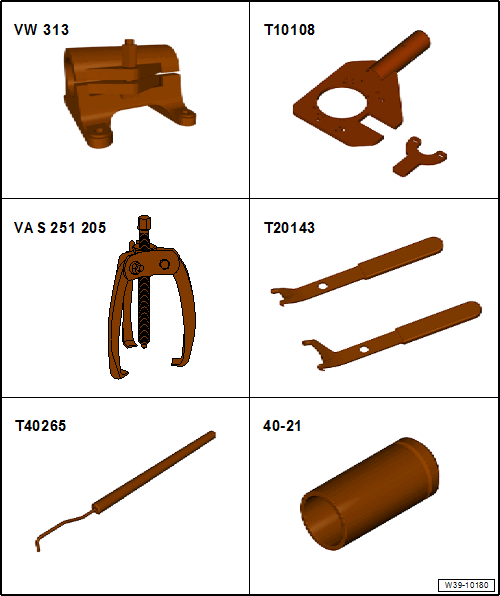

Special tools and workshop equipment required

Holding Fixture:VW313
Gearbox Support:T10108
Three-Arm Puller:VAS 251 205 (previously Kukko 45-2)
Puller - Crankshaft/Power Steering Seal:T20143
Chain Tensioner Locking Tool:T40265
Bearing Installer - Differential Bearing:40-21

Special tools and workshop equipment required

Seal Installer - Side Shaft:T40121

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
Sealing Grease:G 052 128 A1
Refer to the appropriate Electronic Parts Information for the correct locking fluid.
M10 x 30 bolt (quantity: 2)
M12 x 10 nut (quantity: 4)
