Telephone Microphone -R38-, REMOVING AND INSTALLING, >>Panel Lighting<< ONLY: Removing
WARNING: This page is about a different car, the 2023 Volkswagen Arteon. However, it is still accessible from the selected car via links, so may be relevant.
-- Turn off the ignition and all electrical equipment.
-- Move the ignition key outside of the vehicle to prevent the ignition from switching on unintentionally.
-- Remove the front interior lamp. Refer to FRONT INTERIOR LAMP/READING LAMP, REMOVING AND INSTALLING .

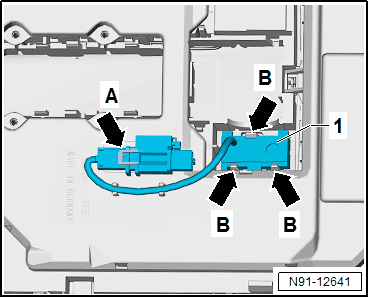

-- Free up the wiring harness to the microphone -1- on the interior lamp.
-- Release the hook -arrow A-.
-- Remove the connector on the microphone -1- forward from the interior lamp.
-- Release the hook -B arrows-.
-- Remove the microphone -1- from the interior lamp.
