Mobile Communication 2-Way Signal Amplifier -J984-, REMOVING AND INSTALLING: Removing
WARNING: This page is about a different car, the 2023 Volkswagen Arteon. However, it is still accessible from the selected car via links, so may be relevant.
-- Turn off the ignition and all electrical equipment.
-- Move the ignition key outside of the vehicle to prevent switching on the ignition unintentionally.
-- Remove the right luggage compartment side trim panel. Refer to LUGGAGE COMPARTMENT SIDE TRIM PANEL, REMOVING AND INSTALLING .

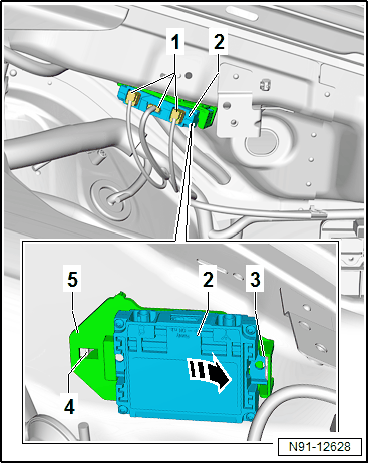

-- Release and disconnect the connectors -1- on the signal amplifier -2-.
-- Release the retaining tab -3- on the bracket -5-.
-- Remove the signal amplifier -2- in the direction of -arrow- from the bracket -5-.
-- Release the retaining tab -4- on the bracket -5-.
-- Remove the bracket -5- in the direction of travel from the body.
